BaSystem® Martin Raabe - Qube5 Editor V2 further development

Hello Qubers!

Status of my further development of the Qube5-Editor V2 from Qube Solutions UG:

These work packages are still open:

Known error: The colors of bowls and background are set to black unintendedly
The "Cancel" button of the Settings Dialog should read "Abbrechen" in German language
Improvement of dialog "Time Settings" - still not specified
Multiple selection for Move by drag&drop
Add support for arrow-keys for rotation

These work packages are identified but deferred:

Drag & drop for file append (is this really possible?)
Undo function - very complex to implement
Create preview images with the orientation of the main window - by extra button or after releasing the mouse button after the move

Here are the versions of my further development of the Qube5-Editor V2 from April 8^th, 2023 Qube Solutions UG:

Editor Cube 5*5*5/8*8*8 and Tetrahedron 5^4 of August 6^th/30^th 2010 Installer (9.4 MB)

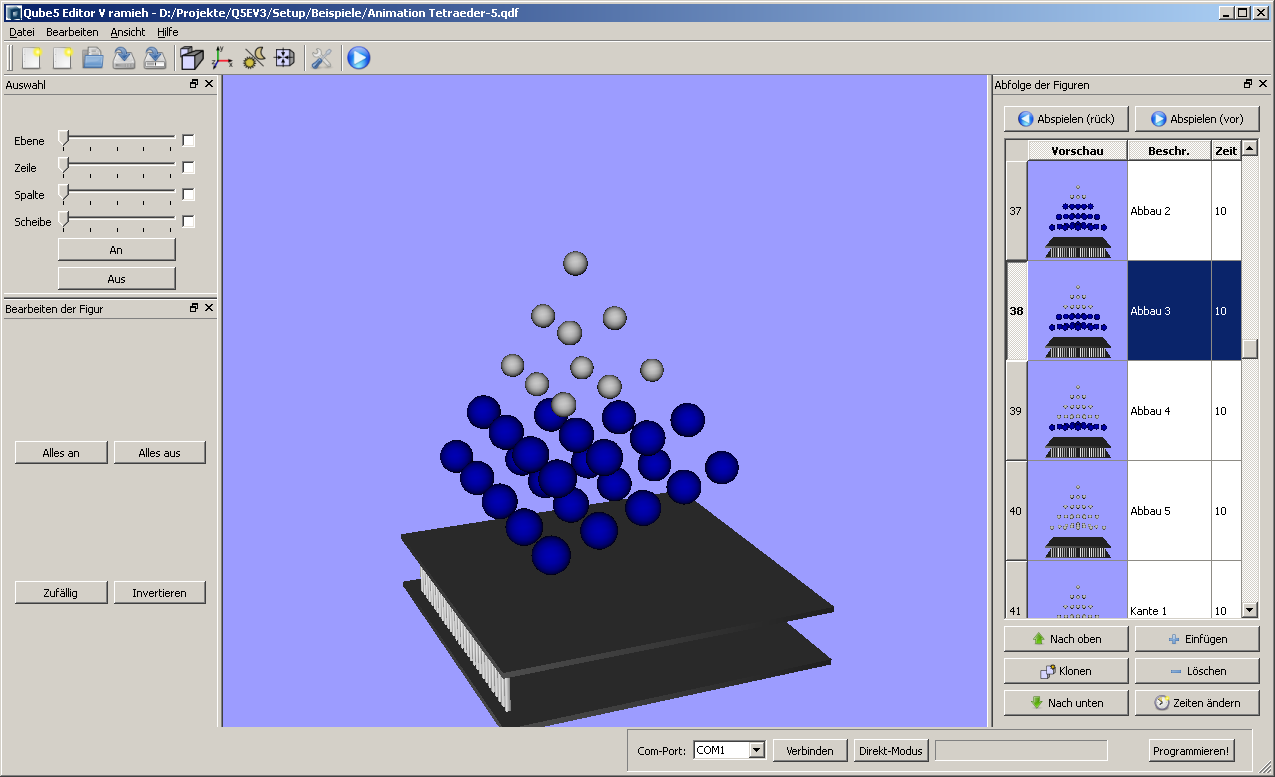

Screen shot of editor Cube 5*5*5 and Tetrahedron 5^4 of August 6^th 2010 (170 KB)

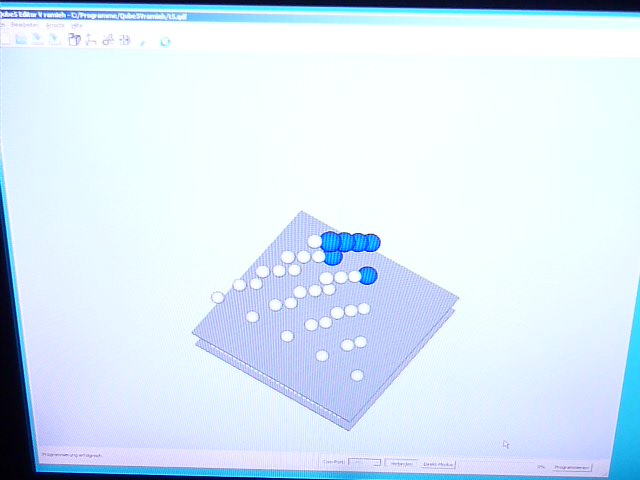

Video preview picture of editor tetrahedron 5^4 of August 30th 2010 (68 KB)
Video of editor tetrahedron 5^4 of August 30th 2010 - German language (127 MB)
Video of editor tetrahedron 5^4 of August 30th 2010 - German language - bad quality of A/V but small (2,5 MB)
- Three versionen of the editor:
  - Tetrahedron only (Qube5VramiehT.exe)
  - Cube only (Qube5VramiehW.exe)
  - Tetrahedron and Cube (Qube5Vramieh.exe)
- Tetraeder with basic functionality (alpha quality)
- Known bug: Crash on second time switching between cube and tetrahedron back and forth
- Downloading to the Qube5 for tetrahedron figures works
Editor 5*5*5 of June 23^rd 2010 Installer (8.2 MB)

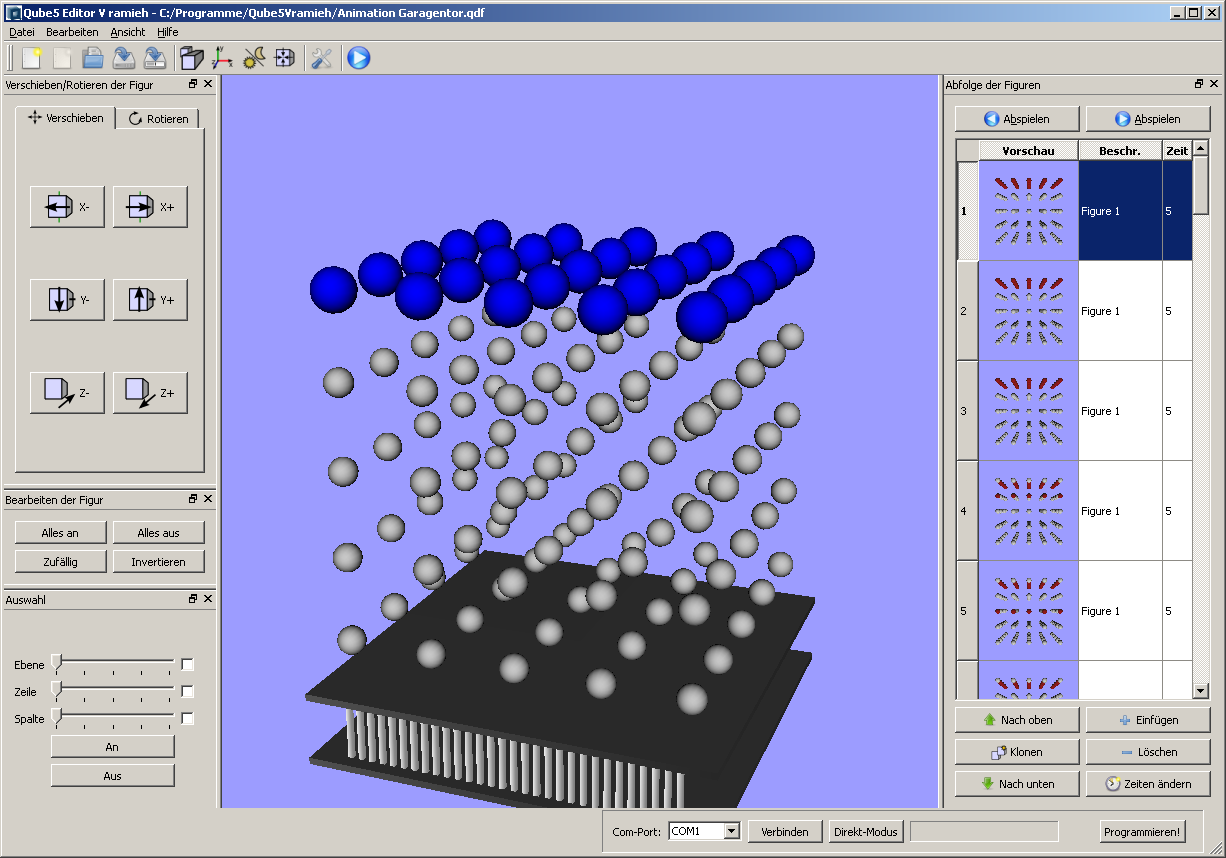

Screen shot of editor 5*5*5 of June 3^rd 2010 (170 KB)
- Multiple selection for Move by buttons
- Non-modal help dialog explaining the main control keys
- Deletion of the list of recently used files
- Selection of recently used files
- Settings contain default value for the play time for a new figure
- Resize window of preselection of rotation in the settings dialog
- Rearrnge tab order
- Extend settings dialog by preselection of rotation
- Installer
- Added close file menu
- Added buttons to create new cube/tetrahedron
- About contains version time stamp
- About for Qt
- Tooltips for button
- Play timings for 5, 6, 7, 8 and 9 Seconds (measure and implement)
- Drag & drop for file open
- Multiple selection for Move/Delete
- Tooltips for button (implementation started)
- Command line parameter filename to support double-klick on a qdf file in the MS-Explorer
- File->New: All LEDs of the first figure need to be switched off
- New icons for all Play buttons
- Play from current position
- Deaktivate Live Mode on Programming
- Support Live mode on Play
- Full Screen Play (endless, Shortcur F)
- Play button has shortcur A
- Docking subdialogs are now closable
- Forward and reverse play
- Add and Insert as one button
- Command line parameter language German / English
Qt runtime environment (4.6.2) for Windows (Release: 5 MB)

Qube5 example files 5*5*5 (2.8 MB)

Editor 9*9*9 of May 16^th 2010 9*9*9 Cube and Tetrahedron-Simulation 3*3*3 - both don't run on the LED-Qube5! (needs Qt debug runtime environment)
Qt runtime environment (4.6.2) for Windows (Debug: 54 MB)

The editor is published under the GPL V3 license.

To use a version of the editor, follow these steps:

Download Qt runtime environment (DLLs) (Debug and/or Release regarding advice of variant of the editor).
UnpackQt runtime environment.
Download one or more variant(s) of the editor (EXEs and QDFs).
Unpack variant(s) of the editor.
Start variant(s) of the editor.

Enjoy!

For comments and ideas please send me an email to Martin.Raabe@BaSystem.de.

Greetings from the Wild West of Rheinhessen
ramieh - Martin - EmbeddedExpert

Date: September 18^th 2010

PS:
The further development shall lead to a program which can be used also for other gemetric figures.
First try: Sierpinski-Tetrahedron.
Attention: New file format for Tetrahedron! (Version 2 - not standardized)!
